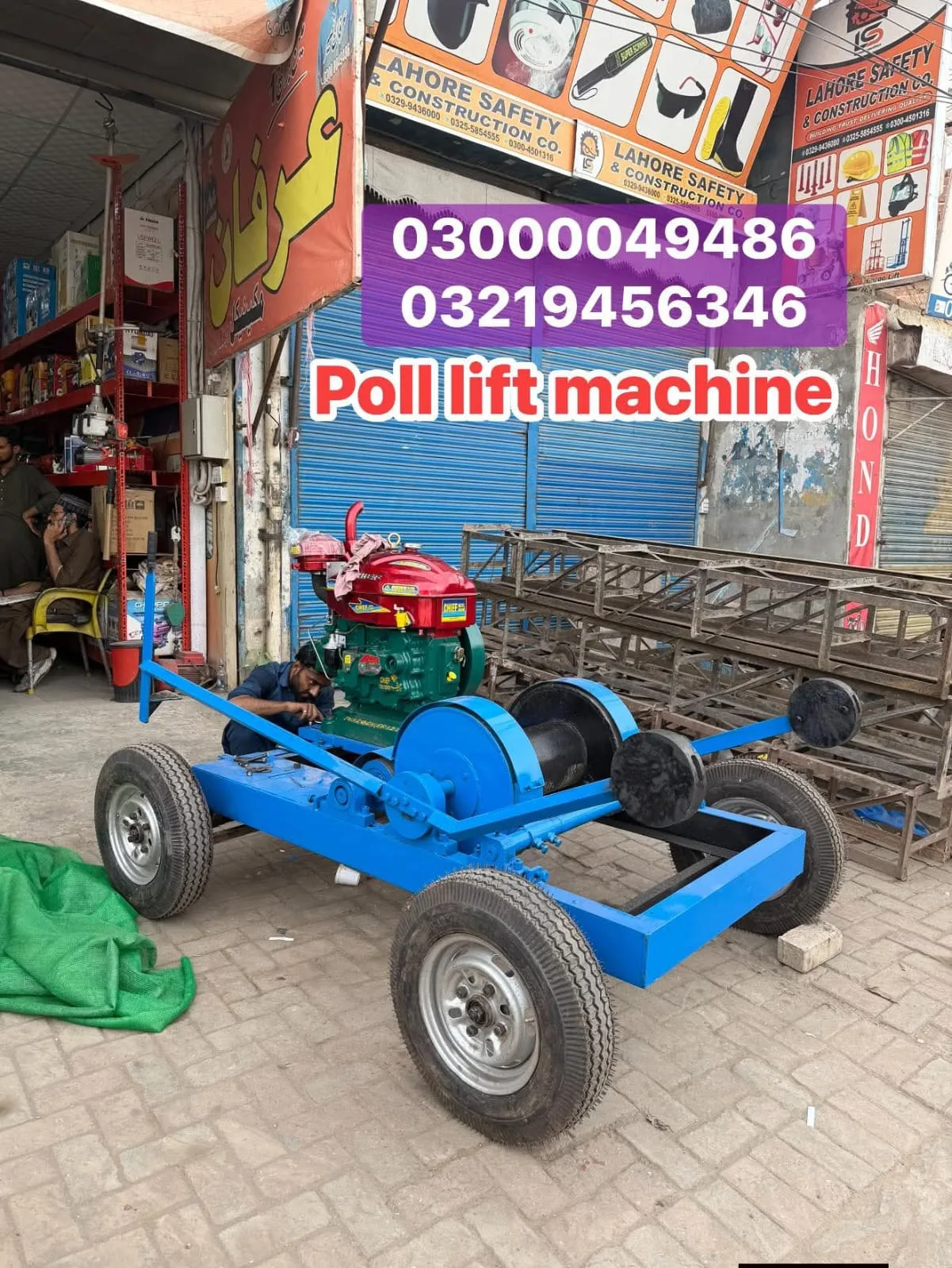

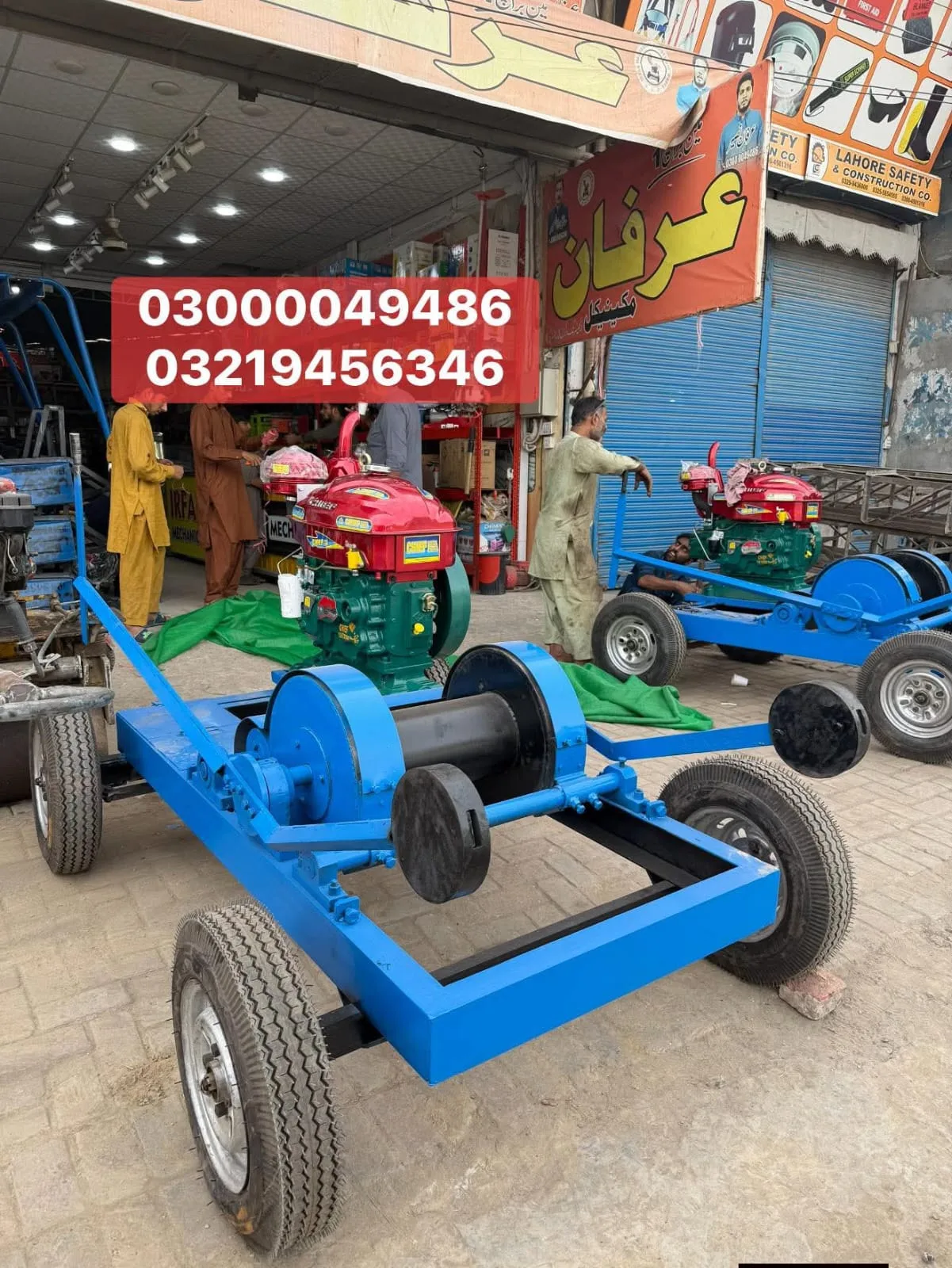

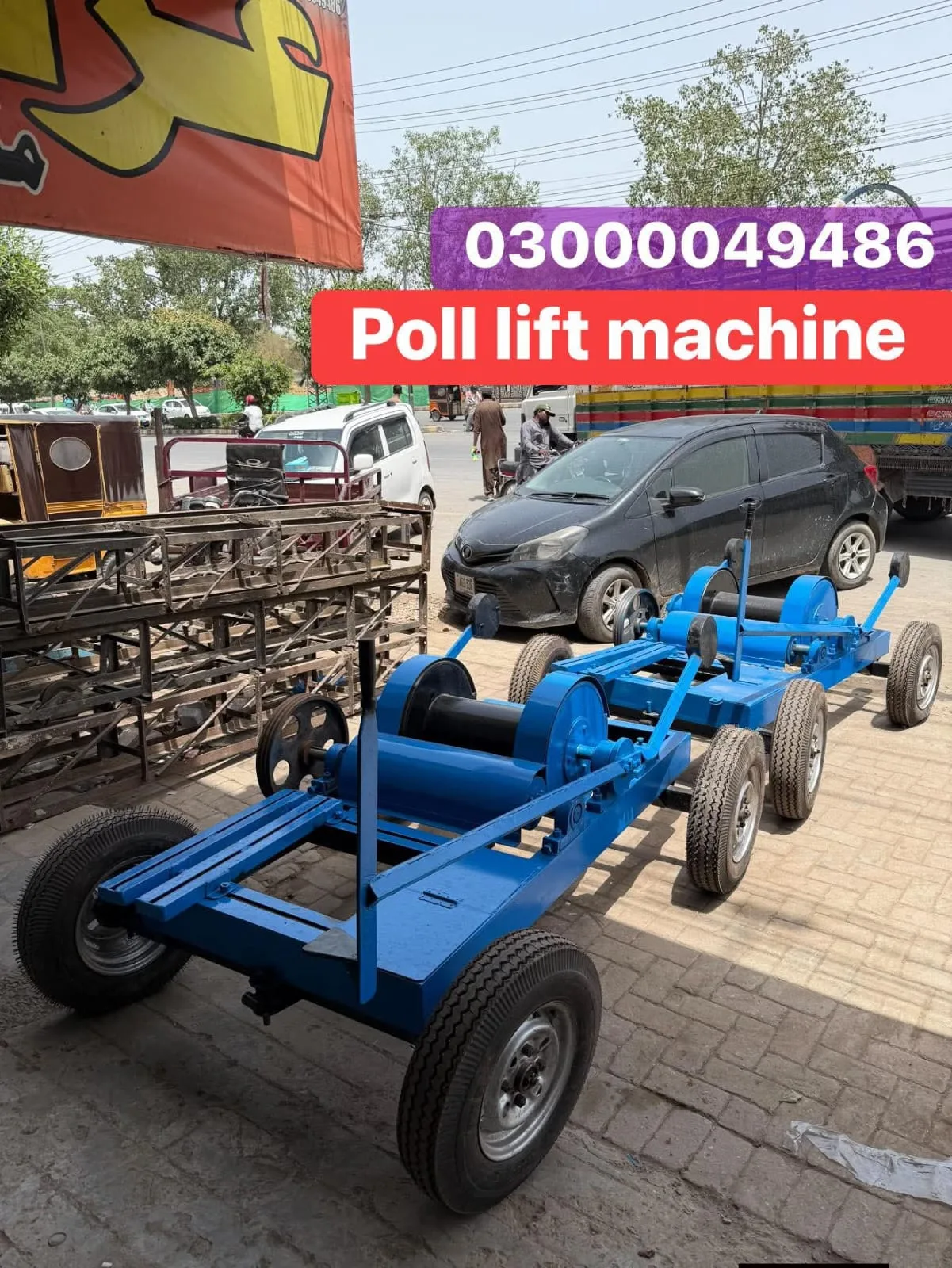

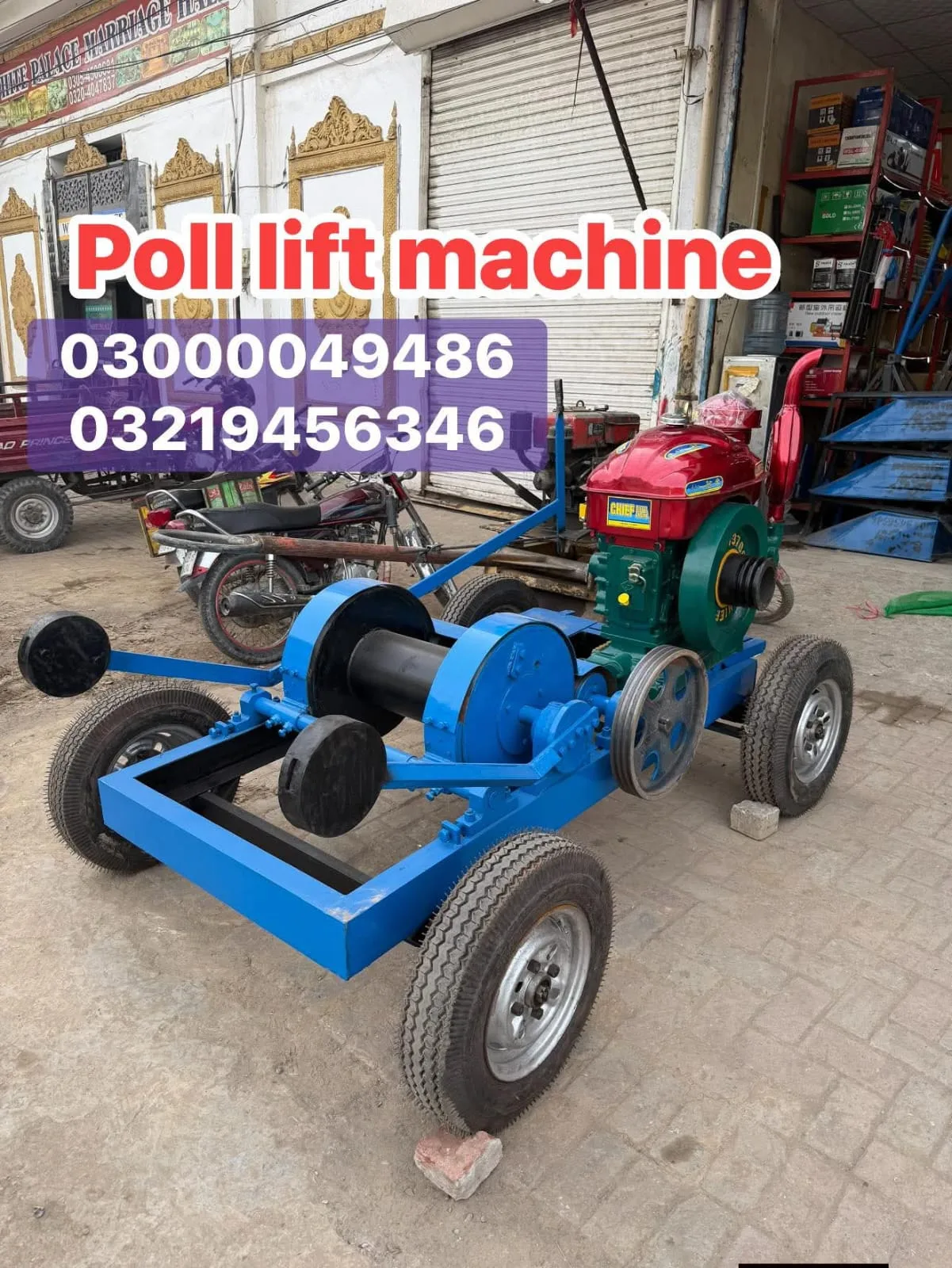

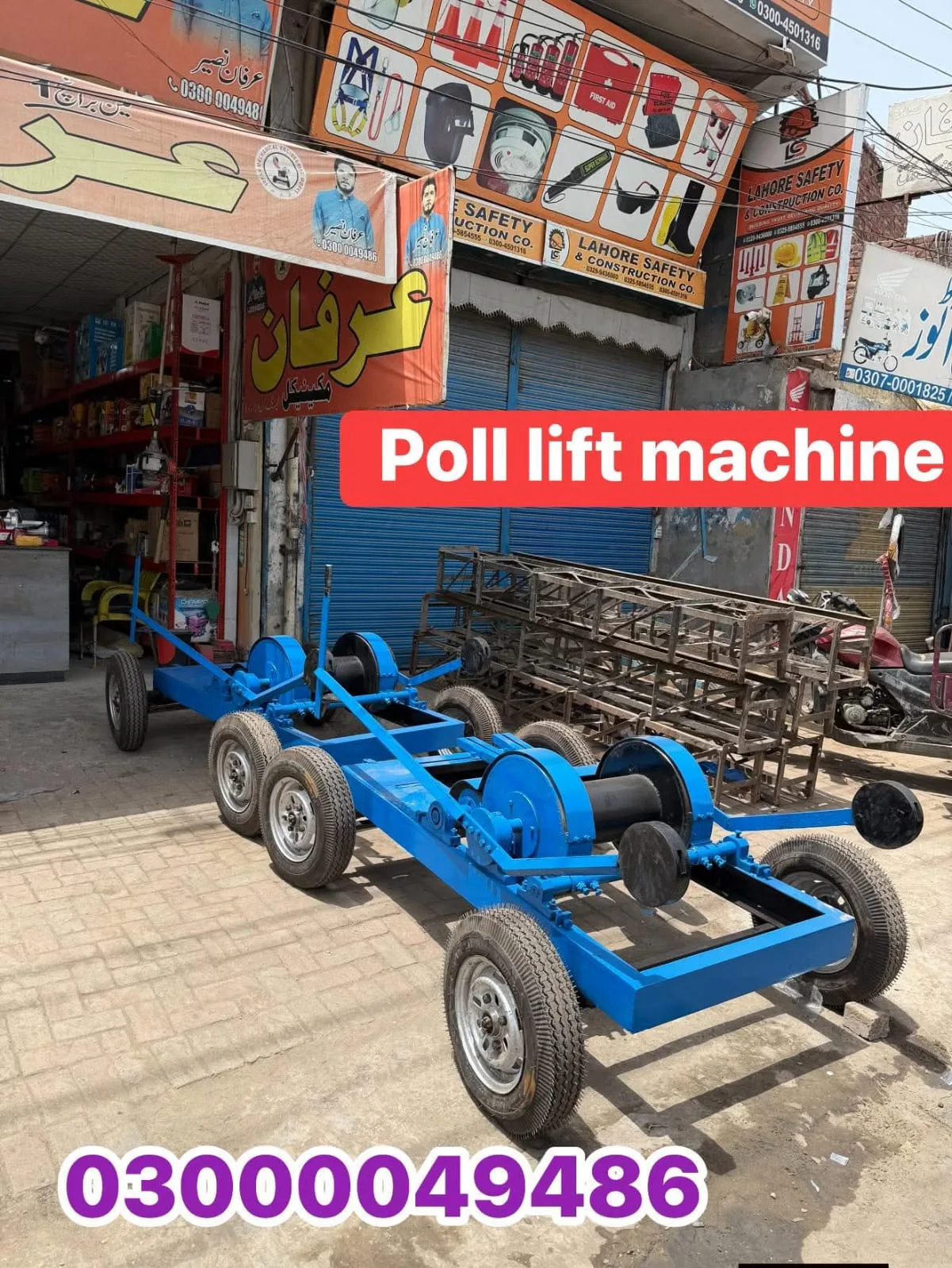

The Poll Lift Machine (commonly referred to as a pole erection or winch lift machine) is a heavy-duty, mobile mechanical unit engineered for lifting, pulling, and positioning heavy industrial components, concrete electric poles, or construction materials. Built on a rugged, towable steel chassis, this machine combines raw diesel power with a high-capacity cable winch system to handle demanding field operations.
Key Technical Features
Heavy-Duty Diesel Engine: The machine is powered by a robust, single-cylinder water-cooled diesel engine (fitted with a prominent green engine block and red fuel tank assembly). This setup ensures high torque output and reliable performance in remote or off-grid construction sites without needing an external electrical power source.
High-Capacity Winch Drum: At the core of the mechanical assembly is a central winch drum designed to spool heavy-duty steel wire ropes. This allows for controlled, high-load pulling and lifting operations.
Reinforced Steel Chassis: The entire mechanism is mounted on a rigid, heavy-gauge steel channel frame finished in a protective industrial blue coating, offering high structural integrity under intense loads.
Mobile 4-Wheel Tow Design: Equipped with four standard automotive-grade pneumatic tires and a integrated rear hitch/tow bar assembly, the machine can be easily transported across rough terrain or towed behind utility vehicles to different site locations.
Stabilizer / Guide Rollers: Features extended metal arms fitted with heavy guide wheels/rollers at the rear, helping to manage wire rope tension and balance the machine safely during heavy lifting procedures.
Primary Applications
Electrical & Telecom Pole Erection: Used extensively for lifting and stepping concrete or steel utility poles into pre-dug pits.
Material Handling: Functions as a mobile ground-based hoist for lifting building materials on construction and civil engineering sites.
Cable Pulling: Ideal for heavy-duty underground or overhead cable tensioning and pulling operations.
